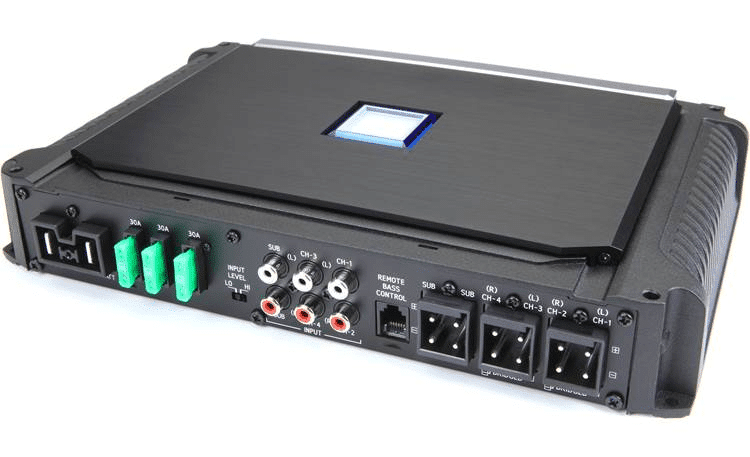

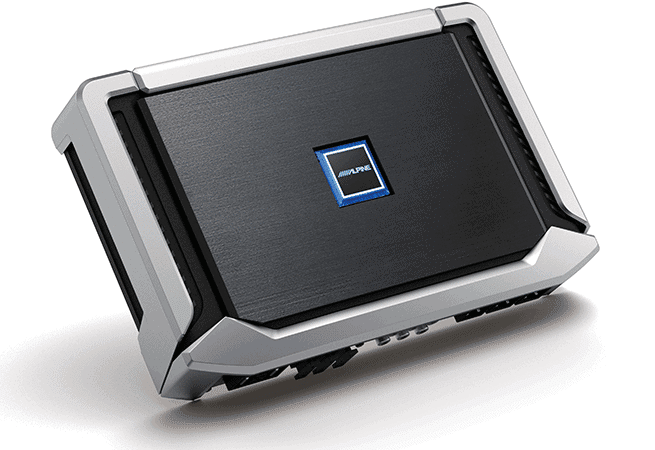

* Alpine X-A90V - X-Series 5-Channel Amplifier

THIS PRODUCT IS LONGER AVAILABLE

Alpine

4 Channel + Mono Amplifier

The X-Series amplifiers set the industry benchmark with an all-new and advanced digital architecture to achieve true high-definition sound with unprecedented purity, accuracy and power efficiency. Their sleek and stylish compact design incorporates an innovative aluminium heat sink with a bespoke air-flow system which keeps the amplifier cool and maintains performance at its peak for incredibly high level power output and no-shut down operation. The X-Series amps are designed for Hi-Res Audio playback by featuring an extended frequency range from 10Hz ~ 60kHz in the full range amplifiers.

Furthermore, X-Series have unmatched staying power with a high damping factor for unparalleled control coupled with virtually zero distortion. This ensures extremely accurate low frequency output for bass at its best and the highest sound quality. The X-Series amplifiers allow your music to stay faithful to the original recording with realism that puts you in the centre of the performance.

General

• Built-in Variable High/Low Pass Filter
• Variable Subsonic Filter (Mono Channel)
• Bass EQ
• Aluminium Heat Sink
• All-new SIERRA Digital Design
• Remote Sensing

Specifications

• 100W RMS x 4 + 500W x 1 [2Ω@14.4V]
• 75W RMS x 4 + 300W x 1 [4Ω@14.4V]
• THD+N (Reference: 10W / rated power into 4 ohms): 0.02%
• S/N Ratio: (IHF A Weighted, Reference: rated power into 4 ohms): >87 dBA
• S/N Ratio: (IHF A Weighted, Reference: 1 W into 4 ohms): >80 dBA
• Input Impedance: 10k ohms
• Frequency Response (Reference: 1 W into 4 ohms):  8Hz – 400 kHz
• Damping Factor (Reference: 1 W into 4 ohms at 100Hz): >1,000

Install

• Connectors: Redesigned Speaker Terminals for Easy Installation
• Terminal Layout: One-Sided
• Mounting Design: Easy Stacking and Clean-look installation

Dimensions

• Width: 297.0 mm
• Height: 50.8 mm
• Depth: 192.0 mm
• Weight: 3.2 kg

Optional

• Remote Bass Control RUXKNOB.2
