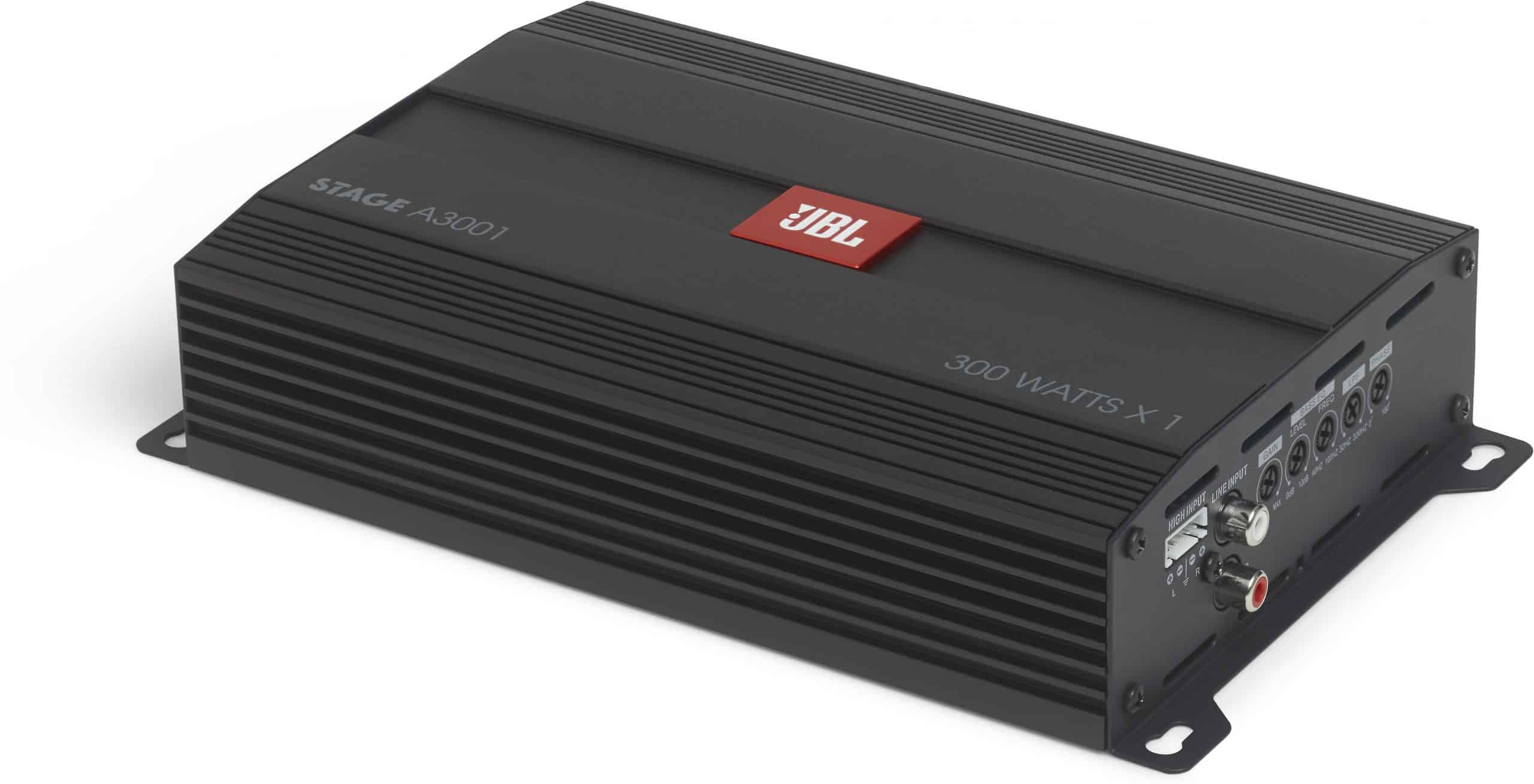

JBL StageA3001 - Mono Amplifier 600w Peak

JBL StageA3001 Mono Amplifier

Power you will feel at your core.
JBL Stage Amps are available in a variety of configurations, delivering the right power and number of channels for full-range and subwoofer applications. For more than four decades, JBL has made the audio experience a lot more satisfying for the car audio enthusiast. With a broad array of loudspeakers, amplifiers and subwoofers available, you can drive with ease and exhilaration. These compact amps are equipped with all the important inputs and user controls including a bass EQ as well as LPF and HPF crossover controls for tailoring sound to suit the characteristics of different vehicles. The Stage Amps are easily installed and amazingly reliable – and once they turn on, they'll make a transducer sit up and sing.

Features

• Value Engineered
• Compact footprint
• Full On-Board Protection
• Reliability
• Input Level Control
• Switchable bass EQ
• Cool industrial design
• Crossover mode switch
• Crossover control gives user additional fine tuning
• Our Point of View

Technical Specifications

• Operating voltage 9 – 16V
• RMS power @ 4 ohms N/A
• RMS power @ 2 ohms 300W
• RMS bridged power @ 4 ohms N/A
• Total peak power 600W
• Frequency response 10Hz – 320kHz @ -3dB
• THD + N at rated power
• (20Hz – 20kHz) <1%
• Line-in signal-to-noise ratio
• (reference to 1 watt) >75dB
• Maximum high input signal level 12V
• High input maximum sensitivity 0.5V
• Maximum line input signal level 5V
• Line input maximum sensitivity 0.2V
• Quiescent current draw <1.5A
• Fuse size 2 x 15A
• Dimensions (H x W x L) 50 x 145 x 241.6mm
• Weight 1.609kg

1. Due to continuous product improvement, specifications pricing and design are subject to change without notice
