DNA USB Ext Surface Mount 3.5mm - ALR237

DNA

ALR237

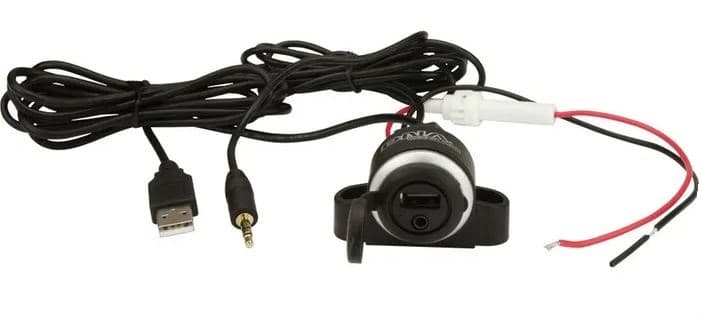

Flush Mount  3.5mm Stereo Socket & USB to 3.5mm Stereo & USB Plug

Flush chassis mount 3.5mm stereo socket and USB to 3.5mm stereo plug and USB audio data lead
Supplied and fitted with rubber end cap to protect socket when not in use.
Mounting options: Can be flush mounted or can be under dash mounted using the supplied sleeve/bracket.
Fitted with red wire (Positive) and black wire (Negative) for devices like mobile phones to be charged through the USB socket. (For the USB to work properly these wires must be connected to positive and negative 12VDC power)

Flush mounting:

• Outer diameter of socket: 34mm
• Installation cut out diameter of socket: 30.75mm
• Installation mounting depth of socket: 42mm

Mounting with sleeve/ bracket:

• Length: 60mm
• Height: 37.5mm
• Depth: 18mm
• Cable length: 1.8 Metres
• Cable colour: Black

** Due to continuous product improvement, specifications and design are subject to change without notice
