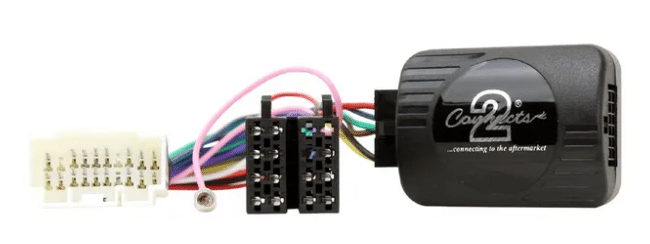

Connects2 CTSSZ002.2 - Harness with SWC for Suzuki - Swift, Grand Vitara, SX4 S-Cross, Vitara 2011-2018
Vehicle Loom + SWC Retention
- Allows you to upgrade to an aftermarket head unit whilst maintaining use of your factory steering wheel controls
- Safety: Allows you to keep your hands on the steering wheel and eyes on the road.
- Plug and play, no cutting of wires required
- Maintains the original features of the vehicle such as date, time and temperature display
- Choose the relevant head unit connection lead according to the make of aftermarket head unit you wish to fit
- For interfaces where phone buttons are supported, the following brands allow pick up/hang up in Bluetooth mode: Alpine, Clarion, Kenwood, Pioneer and Zenec. Please see icon list below to see if this interface supports phone buttons.
- Please check the connections in the vehicle match the harness you are purchasing
- A small amount of hard wiring may still be required to complete the installation
- We recommend that you test wires before connecting
Requires a Steering Wheel Universal Patch Lead
Manufacturer | Model | Note | Year From | Year To | Headunit | Connection |
---|---|---|---|---|---|---|
Suzuki | Swift | (FZ/NZ) | 2011 | 2017 | (PACR01/02/06)/Siemens/VDO SUKNR301/Panasonic navigation | OEM Specific |
Suzuki | SX4-S-Cross | 2013 | 2017 | Panasonic | OEM Specific | |
Suzuki | Vitara | 2015 | 2018 | OEM Specific | ||
Suzuki | Ertiga | 2012 | 2015 | (PACR01/02/06)/Siemens/VDO SUKNR301/Panasonic navigation | OEM Specific | |
Suzuki | Grand-Vitara | (JT) | 2011 | 2015 | Panasonic | OEM Specific |
- Due to continuous product improvement, specifications, pricing and design are subject to change without notice.
- Please check the connections in the vehicle to match the loom you are purchasing
- Not all functions maybe available
- This product has been developed through carefully documented data and research. Big Noise cannot be held responsible for discrepancies/inconsistencies that may occur due to vehicle manufacturing changes or options or damage that may occur in the vehicle during the installation of components
