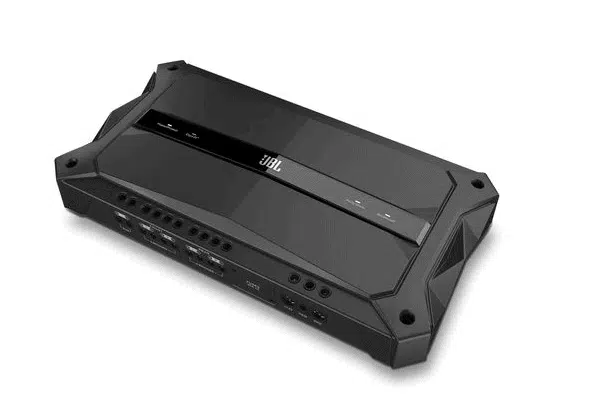

*JBL GTR7535 - Bluetooth 5-Channel Amplifier

THIS PRODUCT IS NO LONGER AVAILABLE

JBL

GTR7535

High Performance 5-Channel Full Range Car Audio Power Amplifier

Bluethooth®audio streaming and telephony support

The two full-range, multi-channel GTR amplifiers feature Bluetooth® connectivity for wireless audio streaming from phones and other devices. You can receive phone calls through your car audio system, just by touching a button on an included control panel.

Clari-Fi™ audio restoration technology
Clari-Fi™, a proprietary DSP technology, is incorporated in the GTR-amplifiers, analyzes music files and improves highly compressed digital music files in real time. A predictive algorithm restores audio content that is discarded in the compression process. Clari-Fi™ works with all playback devices and audio sources. It extends high-frequency bandwidth, restores the natural warmth of vocals and widens the sound stage. In short, Clari-Fi™ gives your digital music back its soul.

Party Mode wireless pairing
The GTR-amplifiers offer Party Mode, a multi-pairing capability that enables Bluetooth® devices to stream audio individually. When Party Mode is selected from the cabin-mounted control panel, anyone in the car can drive the music.

Cabin-mounted control panel
The GTR multi-channel amps come with a wired control panel that incorporates an omni-directional microphone and puts a range of functions at your fingertips. You can activate Bluetooth® pairings, accept and end phone calls, select Party Mode and cancel Clari-Fi™

Class D amplification
Every GTR amplifier, including the full-range models, is a Class D. These high-efficiency, low-heat amps generate a lot of power without drawing much current, and feature small footprints

Full-range line outputs
The GTR104 includes line outputs. This enables them to pass the audio signal to additional amps that power subwoofers, increasing your system configuration options.

High-Level Low Level Inputs
The GTR-7535 will accept both high level and low level inputs which allows for interface to both factory headunits and aftermarket headunits. A simple switch is provided to properly set the input level correctly. To ease installation from high-level inputs, proprietary bare wire to RCA connector adapters are included.

Features

Full Range Channels

2300W  Peak Power

4 Ω : 75RMS x 4, <0.1% THD+N  Power Output

2 Ω : 100RMS x 4, <0.1% THD+N  Power Output

4 Ω : Bridged : 200RMS x 2 <0.3% THD+N  Power Output

>75dB (ref 1W output @ 4 Ω)  Signal to Noise Ratio

Subwoofer Channel

2 Ω : 350RMS x 1, <0.1% THD+N  Power Output

4 Ω : 200RMS x 1, <0.1% THD+N  Power Output

>80dB (ref 1W output @ 2 Ω)  Signal to Noise Ratio

Bluetooth® Audio Streaming



1. Due to continue product improvements, specifications pricing and design are subject to change without notice
