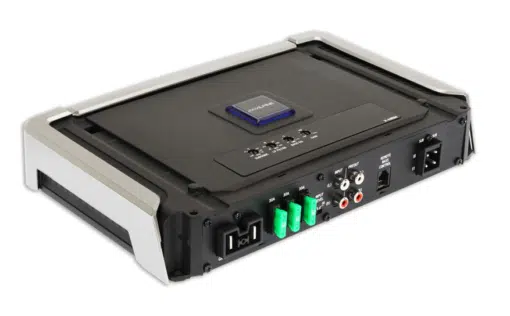

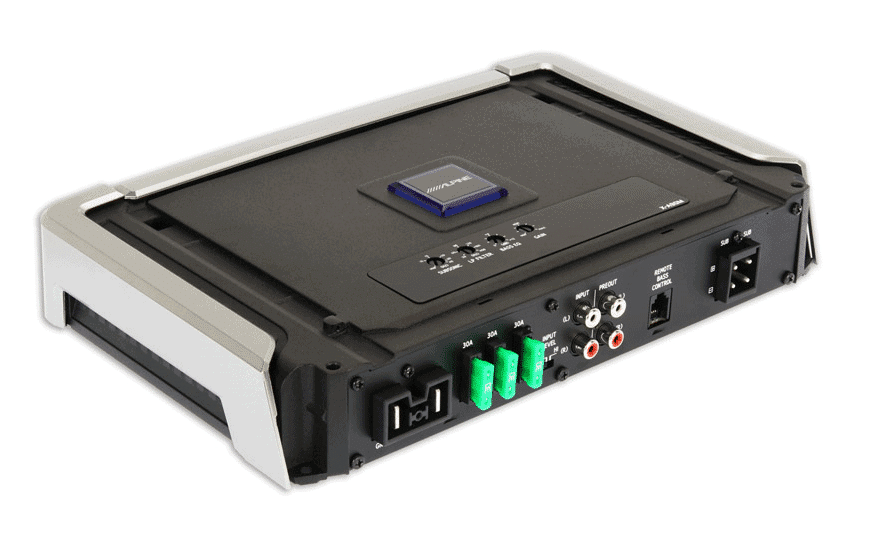

* Alpine XA90M - X Series Mono Amplifier 1800W Peak

Name: * Alpine XA90M - X Series Mono Amplifier 1800W Peak
Brand: Alpine Car Audio
SKU: X-A90M
Availability: OutOfStock

$869.56 exc gst, $999.99, inc gst

Alpine XA90M - X Series Mono Amplifier 1800W Peak

On Backorder

You can sign up to be notified when the product is back in stock.

Add to WishlistAlready In Wishlist

SKU: X-A90M Category: Car audio stereos

Description
Additional information

THIS ITEM IS NO LONGER AVAILABLE

Alpine XA90M - X Series Mono Amplifier 1800W Peak

The X-Series Amplifier are made for an audiophile. With lossless music in Hi-Res Audio playback ability of extended frequency range from 10Hz ~ 60kHz, you can truly enjoy the excited world of music exactly as you in the centre of the performance. The evolutionary innovation of aluminum heat sink with a bespoke air-flow system will keep amplifier not only maintains but also effectively drive power for its performance at peak level for a high-level power output without any interrupted during operation.

This is a perfect power matching item for all new X-Series speaker which can the best sound quality of all time.

FEATURES

Install

Terminal Layout: One side
Screw Mount / Wire Cover: Plug Type Connector (PWR and SPK Terminal)
Mounting Design: Easy Stacking and Smart Installation

General

Amplifier Type: Class-D (Digital)
Channel Design: Mono
Thermal Control: Thermal Management Control
Power Supply: PWM regulated Interleaved flyback with active clamp
Board Circuitry: S.T.A.R. Circuitry
Power Indicator: Top Mounted LED Power/Status Indicator
Speaker Level Input with remote turn on
Crossover: Adjustable Low-pass Filter (LPF)
Built-in Bass EQ
Subsonic Filter: Variable Subsonic Filter
Gain Control: Adjustable
Bass Control: Remote Bass Control (RUX-KNOB2) Ready

SPECIFICATIONS

Max Power Output Ratings

Total Max Power: 1800W

RMS Power Ratings

Per Channel into 4ohms, 14.4V (≤1%THD+N): 600W
Per Channel into 2ohms, 14.4V (≤1%THD+N): 900W

Sound Tuning

Subsonic Filter (Subwoofer): 8-40 Hz (-24dB/oct)
Crossover Frequency (LPF): 50-400 Hz (-24dB/oct)
Equalizer (Bass EQ): 0-12dB (Fc 50Hz, Q Factor 1.3)

General

Power Requirements: 14.4 V.DC (9 - 16 V allowable)
Input Sensitivity (RCA Input): Hi: 0.4 - 10 V Lo: 0.1 - 4.0 V
High Level Input with automatic power on
Cable size: Power Cable 4AWG (20mm2), SPK Cable 8AWG (8mm2)
Frequency Response (+0, -3dB: 1W into 4 ohms): 8-400Hz
THD+N (10W into 4 ohms): <0.02%
THD+N (600W into 4 ohms): <0.07%
Damping Factor: >1500
Signal to Noise (Rated Power into 4 ohms): >107dB
Weight: 3.2 kg

Due to continuous product improvement, specifications and design are subject to change without notice
