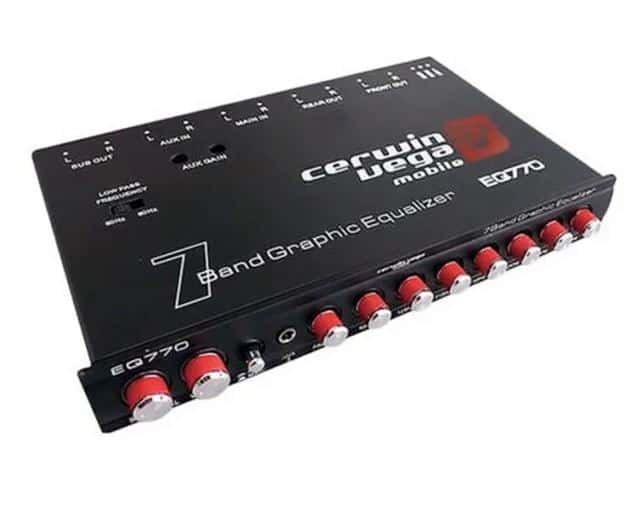

Cerwin-Vega EQ770 - 7 Band Parametic Equaliser
Series 7 Band Parametric Equalizer with Aux input
- Red illumination
- Master and subwoofer volume control
- 3 Sets of up to 7V preamp outputs (front, rear, and subwoofer)
- Subwoofer frequency and level control
- Nickel-plated RCA level inputs
- Nickel-plated screw terminals
- Built-in fader control
Power Supply | 11-15V DC Neg.Ground |
Maximum Output voltage | 7V RMS |
Pre GraPhic Frequencey | 50Hz, 125hz,315Hz,750hz,2.2KHz,6KHz,16KHz |
Equalization Range | +12dB |
Subwoofer Frequencey | 60/90Hz |
Input Impedance | 10k 0hms |
S/N Ratio | 90dB |
Channel Separation | 70dB |
Frequencey Response | 10Hz-50KHz(-3dB) |
- Due to continuous product improvement, specifications pricing and design are subject to change without notice.
- Big Noise cannot be held responsible for discrepancies/inconsistencies that may occur due to vehicle manufacturing changes or options or damage that may occur in the vehicle during the installation of components
