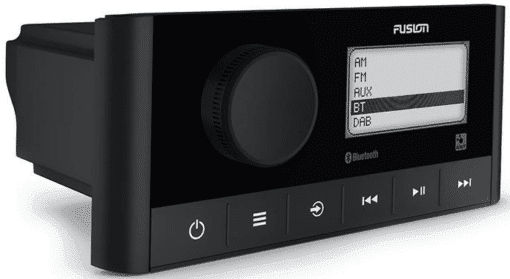

Fusion MS-RA60 - Marine Head Unit with Bluetooth DAB+ and Water Resistant

Bonded LCD improves durability and protection against condensation and fogging.

Built-in Class-D amplifier delivers higher efficiency and greater output.

Multi-Zone Technology gives you control of two separate audio zones.

IPX6 AND IPX7 INGRESS PROTECTION : Designed and engineered for the harsh marine environment, the MS-RA60 stereo has an IPX6- and IPX7-rated water-resistant front panel to perform and last on board.

MODERN DESIGN AND AESTHETICS : Providing uniformity across the helm, the black front face blends seamlessly into black glass panels, complementing other electronics and MFDs for a tidy and ele

RETROFITTABLE : The MS-RA60 is designed to fit in the MS-RA55 mounting profile, eliminating the need to alter your existing cutout, reducing complexity when upgrading your stereo system.

MULTIPLE SOURCE OPTIONS : Take advantage of the multiple source options available, including Bluetooth technology, DAB+ radio, AM/FM radio and AUX connection.

BUILT-IN DAB TUNER : The built-in DAB tuner supports the latest DAB and DAB+ broadcasts, allowing you to enjoy high-quality digital radio streaming wherever DAB and DAB+ are supported.

Enjoy entertainment control with the Fusion-Link App

Control your audio ight from your compatible Garmin watch with the Fusion-Link Lite App

General
Warranty : 1 year
Weight : 316 g
Water rating : IPX6 and IPX7 (front panel only, when properly installed)
Power input : 10.8-16 VDC
Operating temperature range : 0° to 50° C
Current (max.) : 15 A
Bluetooth wireless range : Up to 30 ft. (10 m)
ANT wireless range : Up to 10 ft. (3 m)
Wireless frequencies/protocols : Bluetooth 2.4 GHz @ +12 dBm nominal
ANT 2.4 GHz @ +7 dBm nominal
Compass-safe distance
150 mm

Stereo features
Display : 2.3″ perimeter bonded monochrome dot matrix LCD
Built-in amplifier : Class-D (minimum 4 Ohm impedance)
Peak power  : 180 W
Rated power output (4 Ohm) : 22 W rms x 4 @ 14.4 V input, 4 ohm, 10 % THD
Fusion-Link™ control : Yes (with compatible Apple and Android devices)
Fusion-Link Lite control : Yes (with compatible Garmin watch)
Multi-Zone™ technology : 2 zones
Bluetooth wireless technology : Yes
ANT wireless technology : Yes
DAB+ : Yes (DAB tuner built in)
Multi-language interface : Dutch/English/French/German/Italian/Spanish
Software updates : Over-the-air software updates via Bluetooth wireless technology using the Fusion-Link™ app 1.
Warranty : 1 year

Sources
Sources : AM/FM/Bluetooth/AUX x1/DAB+ (available in Europe and Australia only)

Connectivity
Auxiliary input : One RCA input (AUX)
AM/FM radio : One Motorola antenna connector port
Speaker : 4 x speaker connections (2 amplified zones)
RCA Pre-out (left, right and subwoofer) : 1 zone (requires external amplification)
Line out : Zone 1: L + R (requires external amplification)
Subwoofer out : Zone (requires external amplification)

Whats in the Box

• Fusion® MS-RA60 Marine Stereo
• Mounting gasket
• Four 6-gauge, self-tapping screws
• Two screw covers
• Power and speaker wiring harness
• Auxiliary-in, line-out, and subwoofer-out wiring harnesses
• Documentation

1 Requires app on your compatible smartphone.
The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Garmin is under license.

1. Due to continuous product improvement, specifications pricing and design are subject to change without notice.
2. Some Android devices may not fully support Android Open Accessory (AOA) 2.0
3. Available functions depend on mobile phone
4. Not all phones are compatible
5. Big Noise cannot be held responsible for discrepancies/inconsistencies that may occur due to vehicle manufacturing changes or options or damage that may occur in the vehicle during installation of components. All application data is subject to change.
