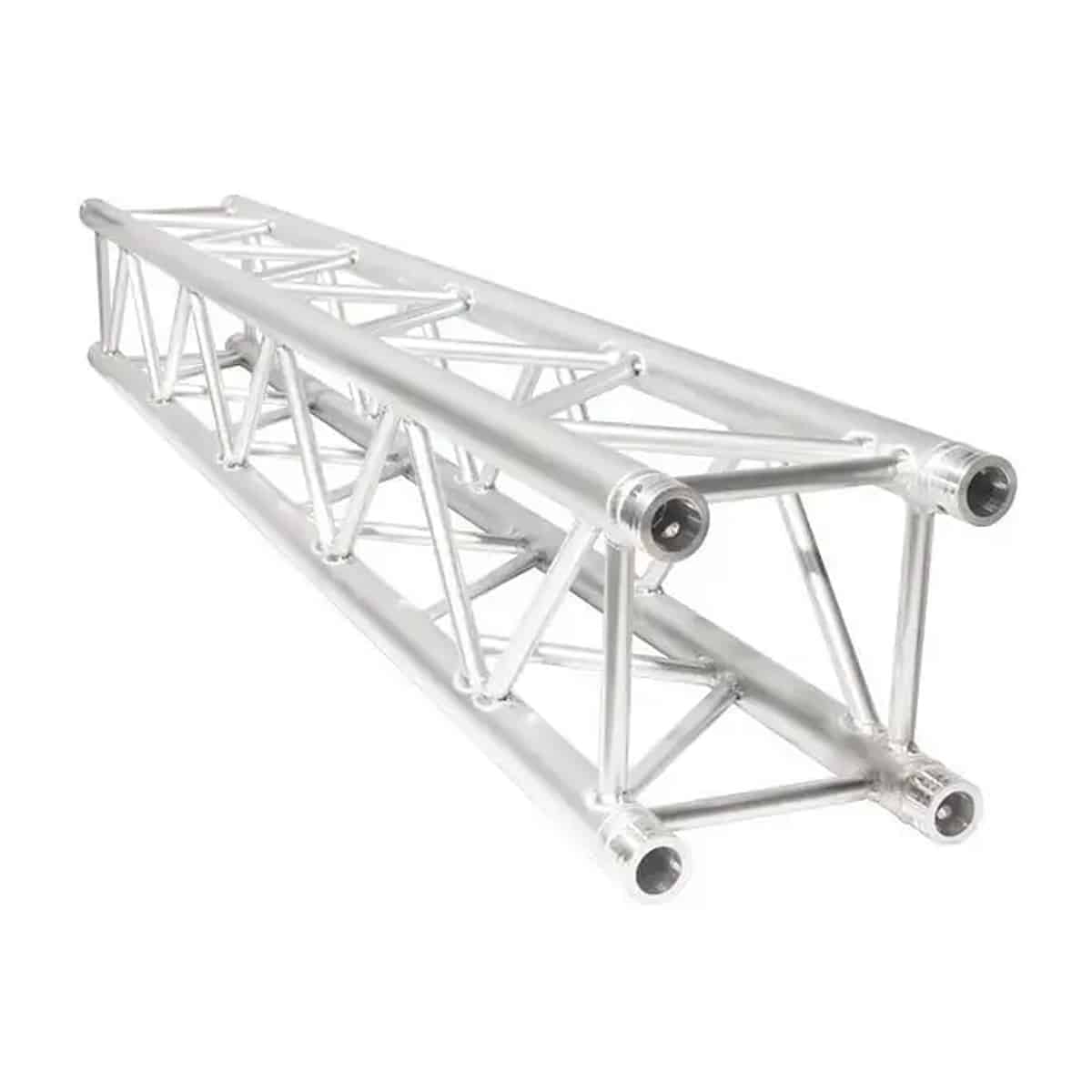

Rental Hire 2m Truss Event Stage & Trussing Hire Equipment Hawkes Bay NZ
HD34 with excellent load capacity on free spans of 18m (59 feet) or to be used as tower elements, HD34 is using the 3mm wall thickness in the maintube which assures durability and extra strength. Designed for high frequency usage or installations, which demands higher loading.
Ideal trussing system for rental, touring and exhibition companies.
FEATURES
- TüV approved
- Also available in any non-standard length and shape
- Tolerance free conical connector system
- Increased loading compared to FD34 (up to 50%)
- HD34 is also available as a Tower Truss
SPECIFICATIONS
Height290 mm / 11.42 in
Width290 mm / 11.42 in
Main Tube 50 x 3 mm / 1.97 x 0.12 in
Braces 20 x 2 mm / 0.79 x 0.08 in
Weight~7,5 kg/m / ~5 lbs/ft
Pin Position-Diagonal
Material-EN AW-6082 T6
ConnectionCS1 - CON
** Please note we do our best to supply what you have hired. If damaged on return from the previous hire, we will swap to a similar item, but will advise you on this prior to pick-up. We apologize for any inconvenience.
